Scan to BIM Workflow and Deliverables: A Technical Guide

The transition from physical built environments to digital building information represents one of the most significant technological advances in the architecture, engineering, and construction (AEC) sector. At the heart of this transformation lies a systematic process that converts real-world measurements into actionable digital assets. What is Scan to BIM encompasses the entire methodology of capturing existing conditions through 3D laser scanning and translating this data into intelligent Building Information Models.

This technical guide examines the comprehensive workflow involved in Scan to BIM conversion and explores the various deliverables that result from this process. Understanding these elements is essential for professionals seeking to leverage reality capture technology for renovation, retrofit, facility management, and heritage preservation projects.

[edit] The Scan to BIM Workflow: A Systematic Approach

The Scan to BIM workflow represents a structured series of phases, each requiring specialized expertise and rigorous quality control. This systematic approach ensures that the final digital model accurately represents existing conditions and serves as a reliable foundation for decision-making throughout a project's lifecycle.

[edit] Phase One: Project Planning and Requirements Definition

The foundation of any successful Scan to BIM project begins with comprehensive planning. During this critical phase, project stakeholders must establish clear parameters that will guide all subsequent activities. This includes determining the Level of Detail (LOD) required for the final model, which directly impacts the complexity and cost of the conversion process.

The LOD specification defines how much geometric and non-geometric information will be embedded within model elements. For instance, an LOD 300 model includes elements with approximate quantities, sizes, shapes, locations, and orientations, whilst an LOD 400 model contains elements with sufficient detail for fabrication and installation. Establishing the appropriate LOD at the outset prevents scope creep and ensures all parties understand the expected level of detail in the final deliverables.

Equally important is defining accuracy tolerances. Different project types demand varying levels of precision. Historical preservation projects may require millimeter-level accuracy to capture intricate architectural details, whereas general facility management applications might function adequately with tolerances of several centimeters. These parameters must be clearly documented and agreed upon before any scanning commences.

[edit] Phase Two: Point Cloud Data Acquisition

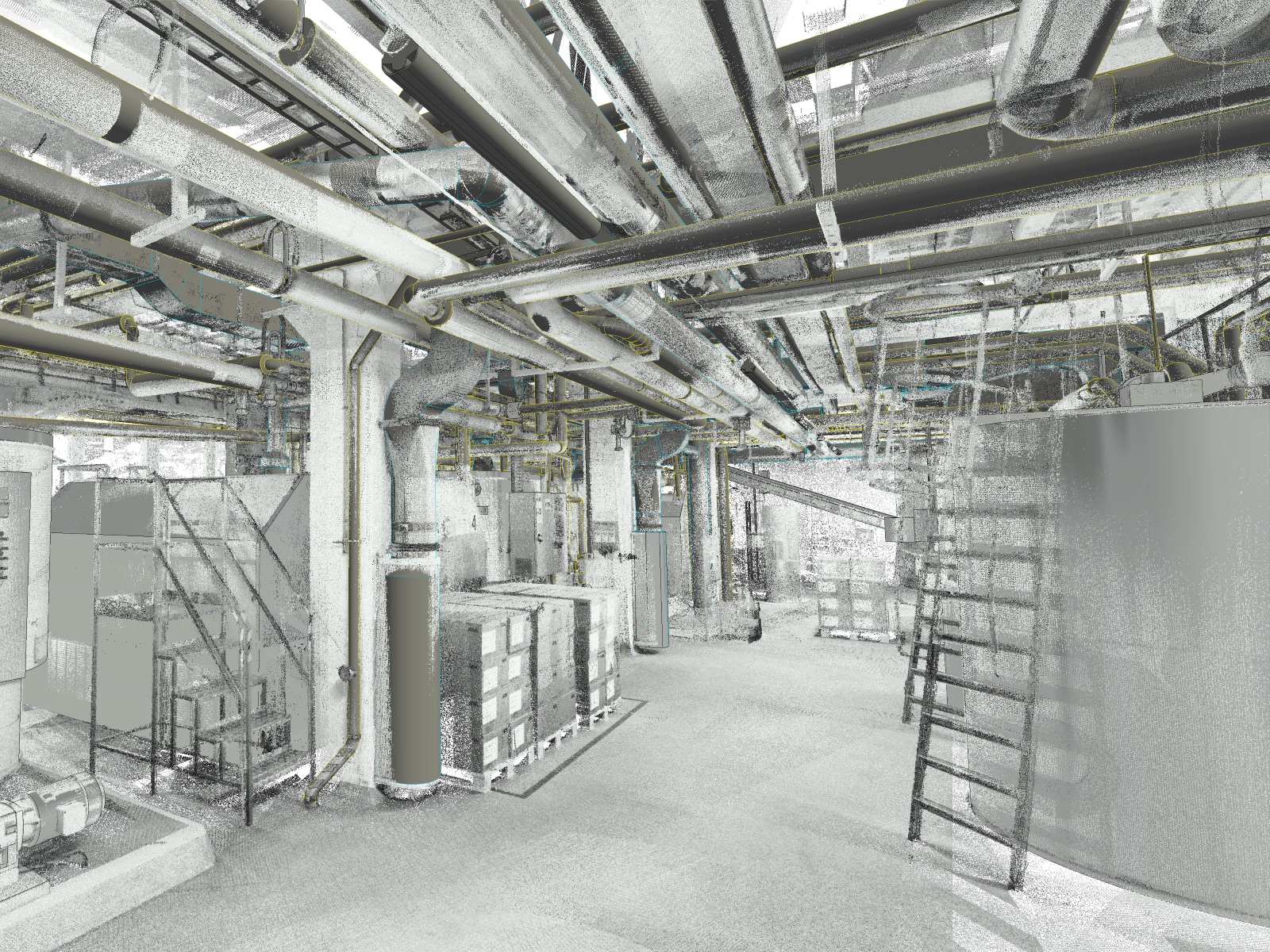

The data capture phase involves deploying high-precision 3D laser scanning equipment to systematically measure the existing structure. Modern laser scanners emit millions of laser pulses per second, creating a dense collection of spatial coordinates known as a point cloud. Each point in this dataset contains XYZ coordinates that precisely define its position in three-dimensional space, along with additional information such as intensity values and, in some cases, RGB color data.

The scanning methodology typically involves establishing multiple scan positions throughout the facility to ensure complete coverage. Careful scan placement is essential to minimize occlusions and shadow areas where structural elements block the laser's line of sight. Professional scanning technicians strategically position the equipment to capture overlapping data, which facilitates accurate registration during post-processing.

For large or complex projects, the scanning process may involve multiple site visits and the deployment of different scanning technologies. Terrestrial laser scanners provide high-accuracy data for building interiors and exteriors, whilst mobile scanning systems can efficiently capture long corridors or extensive site areas. Some projects also incorporate photogrammetry or drone-based capture for façades and rooftops that are difficult to access with ground-based equipment.

[edit] Phase Three: Point Cloud Processing and Registration

Following data acquisition, the raw scan data must undergo processing to create a unified, georeferenced point cloud. Registration is the technical term for aligning multiple individual scans into a single coordinate system. This process relies on identifying common features or reference targets visible in overlapping scans.

Modern registration software employs sophisticated algorithms to automatically detect these correspondences, though manual refinement is often necessary to achieve optimal accuracy. The registration quality directly impacts the final model's accuracy, making this a critical quality control checkpoint. Professional service providers typically verify registration accuracy through statistical analysis, ensuring that alignment errors fall within acceptable tolerances before proceeding to modeling.

Additional post-processing steps may include noise reduction to remove erroneous points caused by reflective surfaces or moving objects during scanning, and data decimation to reduce file sizes whilst maintaining sufficient density for accurate modeling. The processed point cloud serves as the reference dataset for all subsequent modeling activities.

[edit] Phase Four: Intelligent BIM Model Creation

The transformation from point cloud to BIM model represents the most labor-intensive and technically demanding phase of the workflow. Skilled BIM modelers use specialized software platforms, primarily Autodesk Revit, to interpret the point cloud data and construct parametric building elements.

Unlike simple 3D modeling, BIM involves creating intelligent objects with embedded properties and relationships. A wall in a BIM model is not merely a geometric representation but an object containing information about its construction type, materials, fire rating, acoustic properties, and structural capacity. This semantic richness transforms the model from a visual representation into a comprehensive information repository.

The modeling process requires professional judgment to interpret ambiguous or incomplete point cloud data. Modelers must understand construction principles and building systems to accurately represent existing conditions. For instance, when modeling MEP systems, the modeler must distinguish between supply and return ductwork, identify valve types, and ensure proper connectivity between system components, even when portions of the systems are concealed behind finishes.

Industry experts like ViBIM have developed specialized workflows and custom Revit families to efficiently model complex architectural features and building systems. This expertise ensures that models meet project-specific requirements whilst maintaining consistency with industry standards such as ISO 19650 for information management.

[edit] Phase Five: Quality Assurance and Model Validation

Rigorous quality control distinguishes professional-grade Scan to BIM deliverables from basic 3D models. This phase involves multiple verification steps to ensure the model accurately represents the point cloud data and meets the project's defined accuracy tolerances.

Deviation analysis involves comparing the finished BIM model against the source point cloud to identify discrepancies. Advanced analysis software generates color-coded heat maps that visually highlight areas where the model deviates from the measured data. This allows quality control teams to identify and correct modeling errors before final delivery.

Additional quality checks include verifying that all model elements conform to the specified LOD requirements, ensuring proper element categorization and naming conventions, confirming that embedded data and properties are complete and accurate, and conducting clash detection to identify conflicts between building systems. These comprehensive checks ensure that the deliverables meet professional standards and provide reliable information for downstream applications.

[edit] Scan to BIM Deliverables: What to Expect

The outputs from a Scan to BIM project extend beyond the BIM model itself. A comprehensive project typically includes multiple deliverables, each serving specific purposes within the project workflow.

[edit] The Native BIM Model

The primary deliverable is the native BIM model, typically created in Autodesk Revit format (.rvt files). This model contains all the parametric building elements, embedded data, and relationships that define an intelligent building information model. The native format allows other project team members using the same software to directly edit and modify the model as the project progresses.

Native BIM models are structured according to discipline, with separate models or linked files for architectural, structural, and MEP systems. This modular approach facilitates coordination between different design disciplines and allows team members to work concurrently on their respective systems.

[edit] Coordinated Point Cloud Files

Processed and registered point cloud files are typically provided alongside the BIM model. These files serve as verification data, allowing recipients to confirm the model's accuracy against the original measurements. Point clouds are commonly delivered in industry-standard formats such as RCP (Autodesk ReCap), E57 (ASTM standard), or LAS/LAZ files.

The coordinated point cloud is georeferenced to match the BIM model's coordinate system, enabling seamless overlay and comparison within modeling software or specialized analysis applications. This coordination is essential for ongoing model validation and future renovation phases.

[edit] Two-Dimensional Drawings and Documentation

Despite the three-dimensional nature of BIM, traditional two-dimensional drawings remain important deliverables for many stakeholders. Comprehensive drawing sets extracted from the BIM model typically include floor plans at various levels, building sections and elevations, detail drawings of complex assemblies, and MEP system diagrams and schedules.

These drawings are not simply static exports but intelligent views of the underlying BIM model. Changes to the model automatically update all associated drawings, ensuring consistency and reducing the potential for conflicting information. The drawings are typically delivered in both native CAD formats (.dwg) and PDF for broader accessibility.

[edit] Three-Dimensional Visualization Models

For communication with non-technical stakeholders or public engagement, simplified visualization models may be provided. These models prioritize visual clarity over technical information, often incorporating photorealistic materials and textures to create compelling presentations. Visualization deliverables may include rendered images and animations, interactive 3D PDFs that allow basic navigation without specialized software, or VR-ready models for immersive walkthroughs.

[edit] Coordination and Clash Detection Reports

For projects involving multiple building systems or coordination between new and existing construction, clash detection reports identify spatial conflicts that could cause construction problems. These reports document intersections between structural elements and MEP systems, clearance violations for maintenance access, and conflicts between proposed designs and existing conditions.

Early identification of these issues in the digital environment prevents costly field modifications and construction delays. The reports typically include visual documentation of each clash, classification by severity and discipline, and recommendations for resolution.

[edit] Data Deliverables and Model Analytics

Beyond geometry, BIM models contain extensive data about building components. Structured data exports provide this information in formats suitable for facility management systems, cost estimation software, or energy analysis tools. Common data deliverables include element schedules with quantities and properties, COBie data for facility handover, and IFC files for interoperability with other BIM platforms.

These structured data deliverables ensure that the investment in creating a BIM model yields long-term value beyond the immediate project, supporting asset management activities throughout the facility's operational life.

[edit] Factors Affecting Workflow Duration and Deliverable Quality

Several variables influence both the time required to complete the Scan to BIM workflow and the quality of the final deliverables. Understanding these factors helps stakeholders establish realistic project timelines and budgets.

Project size and complexity are primary determinants, with larger facilities or those featuring intricate architectural details requiring proportionally more time for both scanning and modeling. The condition and accessibility of the facility also impact efficiency, as cluttered spaces or restricted access areas complicate data capture and may result in incomplete coverage.

The required LOD significantly affects modeling duration, as higher detail levels demand more time to create and verify. Similarly, the quality of the input point cloud data influences modeling efficiency. Dense, clean point clouds with minimal noise and complete coverage enable faster, more accurate modeling than sparse or noisy datasets with gaps in coverage.

The complexity of building systems, particularly MEP installations, can substantially extend modeling timelines. Buildings with extensive mechanical systems, complex piping arrangements, or multiple interconnected utilities require careful interpretation and modeling to accurately represent system layouts and connections.

[edit] Applications Across the Built Environment

The Scan to BIM workflow supports diverse applications across various sectors of the built environment. Understanding these applications helps professionals identify opportunities to leverage this technology for improved project outcomes.

Renovation and retrofit projects represent the most common application, where accurate as-built documentation is essential for planning modifications to existing structures. The precise measurements and comprehensive documentation provided by Scan to BIM reduce design risks and construction surprises, leading to more predictable project execution.

Heritage conservation projects benefit from the technology's ability to capture intricate architectural details without physical contact. The resulting digital archive serves both immediate conservation needs and creates a permanent record for future generations. This documentation proves invaluable when restoration becomes necessary following damage or deterioration.

Facility management organizations increasingly use Scan to BIM to create digital twins of their building portfolios. These models support space management, maintenance planning, and capital improvement programming. The semantic richness of BIM models allows facility managers to query building data, track asset lifecycles, and optimize operational efficiency.

Industrial facilities and infrastructure projects utilize Scan to BIM for documentation of complex process equipment and utility systems. The accurate spatial relationships captured in these models facilitate maintenance access planning and support safe modification of operational facilities.

[edit] Conclusion

The Scan to BIM workflow represents a mature and reliable methodology for transforming physical built environments into intelligent digital models. Each phase of the workflow contributes to the accuracy and utility of the final deliverables, from careful planning and precise data capture through rigorous quality assurance.

The diverse deliverables resulting from this process serve stakeholders throughout the project lifecycle and beyond, supporting design, construction, and facility management activities. As reality capture technology continues to evolve and BIM adoption expands across the industry, the importance of understanding this workflow will only increase.

Professional execution of the Scan to BIM process requires specialized expertise, advanced technology, and rigorous quality control procedures. Organizations seeking to leverage these capabilities for their projects benefit from partnering with experienced service providers who have demonstrated proficiency in delivering accurate, reliable models that meet international standards and project-specific requirements.
